AG10

The AG Range

AG10

From: £4,400.00 excl. VAT

The AG10 is our 250mm Newtonian Astrograph and has over 50% more light grasp than the AG8 and, 25% greater resolution in image detail available. Capable of fitting on most medium size mountings it is ideally suited to mounts with a carrying capacity in excess of 15kg to allow the addition of accessories for imaging.

The AG10 is an instrument capable of producing images at or even beyond the theoretical limits of a 250mm telescope, purely because of the flatness of the field right to the edge, ensuring contrast is maximised because light is not spread over a larger area through off axis coma and, the application of Hilux to the reflective surfaces of both secondary and primary mirrors. This passes more light than every telescope not coated with reflective surfaces like Hilux to either your eye or, as with imaging a priority with the AG range, a cameras imaging chip. Brighter images, higher contrast images, shorter exposures, more detailed images, a great number of advantages are the result of Hilux and the AG Wynne corrector.

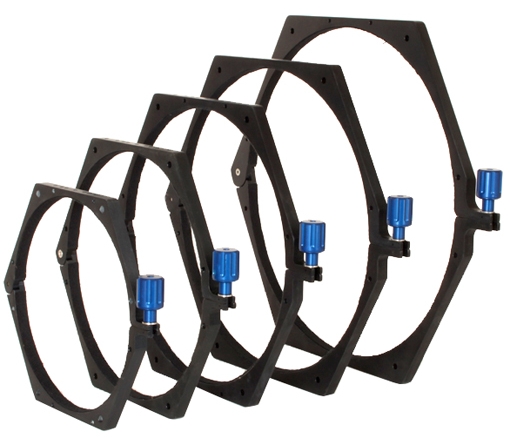

To enable extreme stability and minimise any flexure to a level which cannot be detected in images, an upgrade to the FLI Atlas focuser is recommended on this model. Coupled with the optional set of CNC rings and internal blackened stainless contoured plate, it is capable of carrying the heaviest imaging equipment without any visible flexure or slippage.
Click on the links below to see the full details of the equipment.
UPGRADE STABILITY KIT FOR ATLAS FOCUSER
UPGRADE KIT TO INCREASE STABILITY OF ACU-3 FOCUSER OR ATLAS FOCUSER

If you would like some further details of the AG10 or, perhaps come and see us and have a look at one and actually see them being made, let us know and we can arrange something for you.



SKU: AG10 Categories: ,

SPECIFICATIONS

AG8 AG10 AG12 AG14 AG16
Primary mirror diameter 200mm 250mm 300mm 350mm 400mm
Focal Length 760mm 950mm 1140mm 1330mm 1520mm
Focal Ratio f/3.8 f/3.8 f/3.8 f/3.8 f/3.8
Focus Distance To Image Plane 79mm 79mm 79mm 79mm 79mm
Tube Weight approx. 6kg approx. 12kg approx. 16kg approx. 24kg approx. 33kg
Tube Diameter 255mm 300mm 350mm 400mm 450mm
Tube Length 635mm 810mm 980mm 1203mm 1320mm
Tube Material Carbon fibre sandwich Carbon fibre sandwich Carbon fibre sandwich Carbon fibre sandwich Carbon fibre sandwich
Secondary Size 90mm 100mm 110mm 120mm 130mm
Mirror Cell CNC Machined alum. 9 point suspension CNC Machined alum. 9 point suspension CNC Machined alum. 9 point suspension CNC Machined alum. 9 point suspension CNC Machined alum. 9 point suspension
Focuser 3″ Crayford with 10:1 reduction 3″ Crayford with 10:1 reduction 3″ Crayford with 10:1 reduction 3″ Crayford with 10:1 reduction 3″ Crayford with 10:1 reduction
Corrector Design 4 lens ED 4 lens ED 4 lens ED 4 lens ED 4 lens ED
Flat Field Size 45mm 50mm >50mm >50mm >50mm

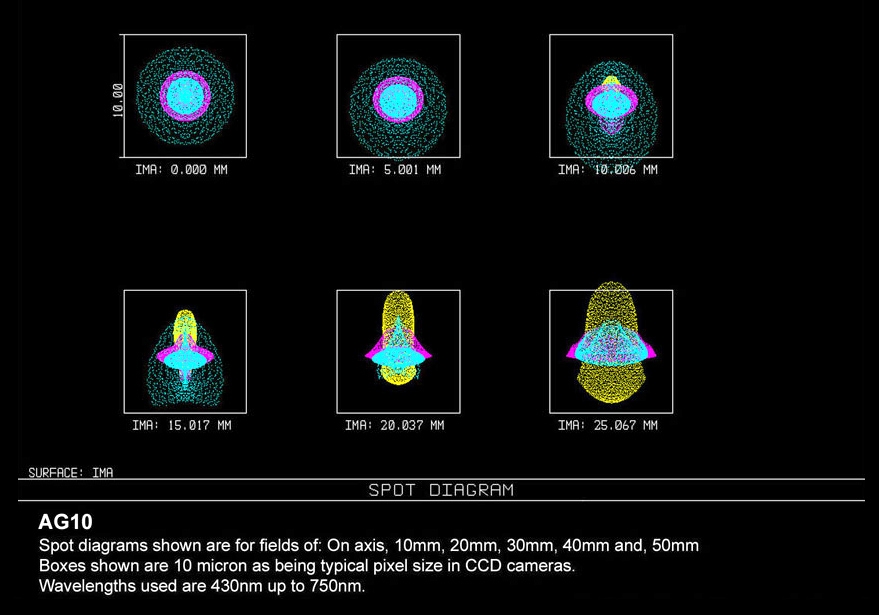

Spot Size on Axis 4.1μm 3.0μm 1.7μm 3.4μm 4.1μm
Spot Size at Field Edge 8.1μm 7.2μm 4.6μm 4.7μm 6.6μm
Mirror / Tube Cooling 3 Controllable fans. Heaters optional 3 Controllable fans. Heaters optional 3 Controllable fans. Heaters optional 3 Controllable fans. Heaters optional 3 Controllable fans. Heaters optional
CNC machined alum. Cradles + Dovetail CNC machined alum. Cradles + Dovetail CNC machined alum. Cradles + Dovetail CNC machined alum. Cradles + Dovetail CNC machined alum. Cradles + Dovetail CNC machined alum. Cradles + Dovetail
